Description

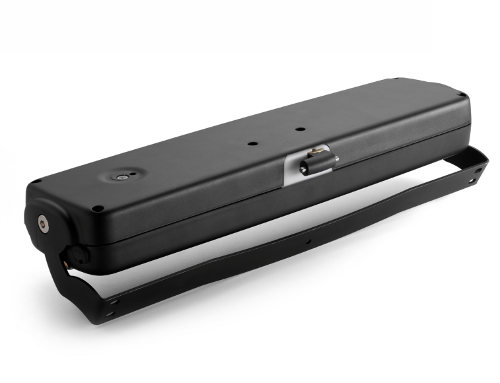

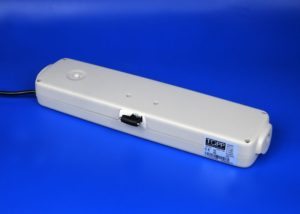

Electric actuator TOPP, model C40 with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung window. Operation at 230V~ 50 Hz or, as an alternative, at 24 V d.c. Maximum applicable load 400N. Rapid hooking for the adjustment to the frame max stroke 50 cm. Electronic adjustment of the end of stroke at 10, 15, 20, 25, 30,40, 50 cm. by an external handgrip. Strok-end in closure through current absorption. Safety advise for traction force reduction in the last 10cm. Protection degree of electric devices IP 55. If required, pre set version for the USA2 synchronization unit available, for the simultaneous running of 2 actuators on the same window. CE marked device complying with the following directives: EEC 89/336, EEC 73/23 and following amendments.

Additional information

Document Downloads

TOPP-chain-actuator-C40-instructions

TOPP-chain-actuator-C40-DataSheet
